cosφ meter
Summary
●Non-flammable case
●Double isolation (back)
●Measurement Category II
●Terminal connection
●Installation with rear terminal panel
●IP 40 (front panel)
●IEC 61000-6-2 IEC 61000-6-4 IEC 61000-1 |
| |
|
Product Selection Table |
|
piece/carton |
|
Product code |
|

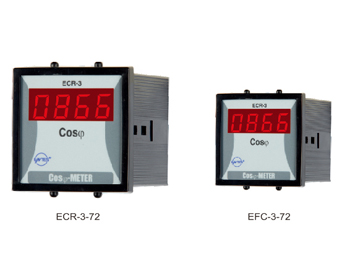

ECR-3-48 |
CosφMeter(0- 1,00Cover) |
20 |
|
ECR-3-72 |
CosφMeter(0- 1,00Cover) |
16 |
|
ECR-3-96 |
CosφMeter(0- 1,00Cover) |
12 |
|
EFC-3-48 |
Frequency tableFrequency table(20-400 Hz.) |
20 |
|
EFC-3-72 |
Frequency table(20-400 Hz.) |
16 |
|
EFC-3-96 |
Frequency table(20-400 Hz.) |
12 |
Specifications
|
|
Frequency table |
Cos φMeter |
|
EFC-3 |
ECR-3 |
|
Shell |
|
size |
72X72mm(PR18), 96X96mm (PR19), 48X96mm (PR20) |
|
weight |
0.3kg/16piece(PR18); 0.3kg /20piece(PR20), 0.3kg /20piece(PR19) |
|
Display |
Red LED; 14.2mm high |
|
|
measure |
|
frequency/Cos φ |
|
measuring range |
20-400 Hz1%1 position |
0.00-1.00 (Inductance capacitance) |
|
Accuracy |
|
2%±1 position |
|
Electric measure |
|
100mA-5.5A |
|
Transformer with transformer measuring range |
|
.../5A |
|
Power Supply |
|
working voltage |
230VAC+10% |
|
working frequency |
45-65Hz |
50/60Hz |
|
environment condition |
|
working temperature |
-5/+50℃ |
|
Overvoltage category |
III |
|
Connect |
|
install |
PR18,PR19,PR20Panel installation |
|
Connection terminal |
Screw terminal |
|
line type |
Single phase 2 wire | |
|
|
|
| |
|
|
|
